Navigating the Configuration Menu (Legacy)

---

• The purpose of this guide is to provide a walkthrough of navigating the configuration menu on a Versatile kiosk using legacy software
• This guide is intended for the personnel responsible for maintaining the kiosk
• If you require any assistance past what this guide provides, please contact Versatile Credit Customer Support
  • Email: [e-mail]
  • Phone: [phone]
  • Website: versatilecredit.com (Contact Us)

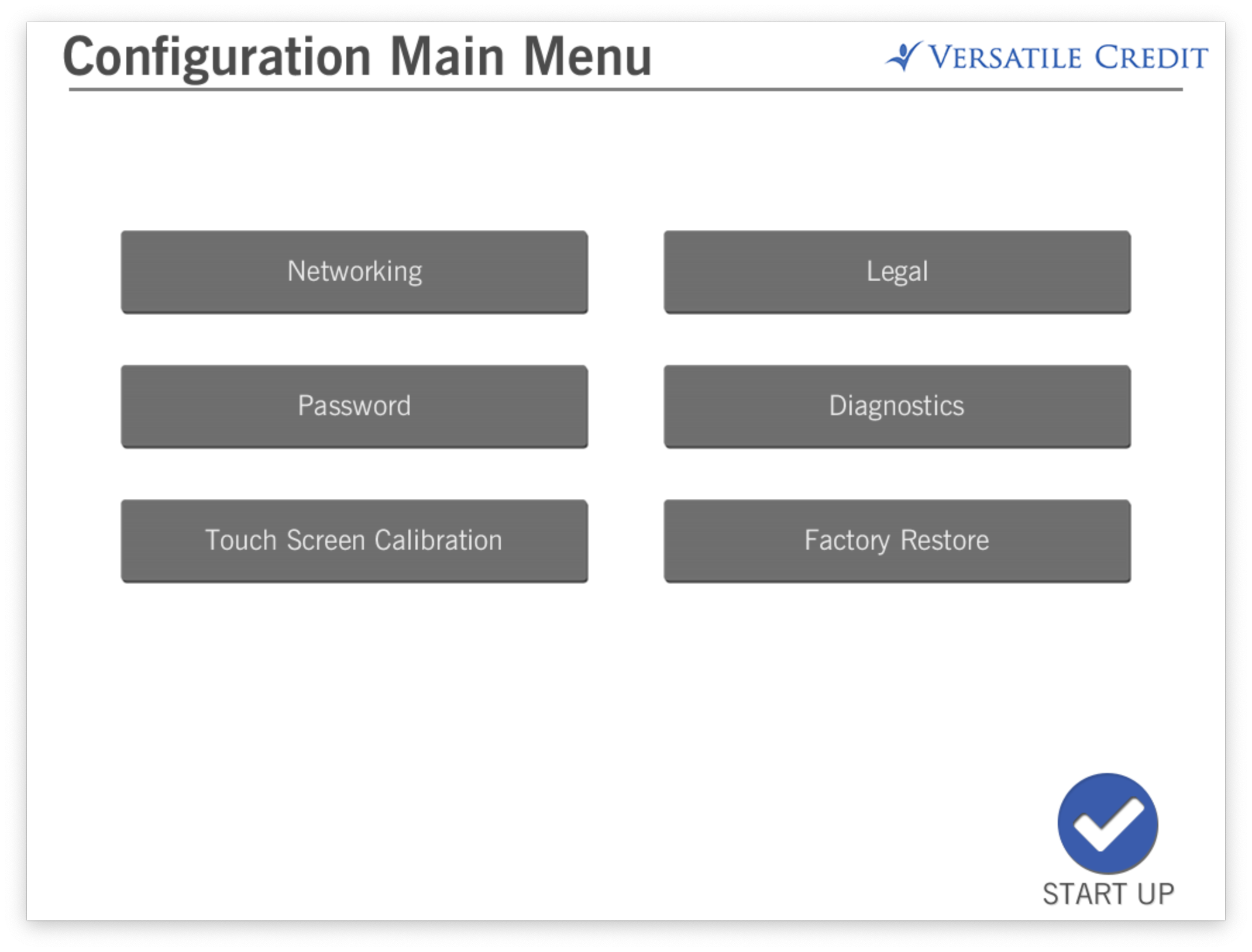

Overview

---

When you access the Legacy configuration menu on a Versatile kiosk, you'll be greeted by the main menu screen. Here, you will find various options for setting up and reconfiguring your kiosk. The options on the configuration menu are:

• Networking
  • Connect
  • Diagnostics
• Diagnostics
• Password
• Factory Restore

The options avaiilable in the menu will vary by software version

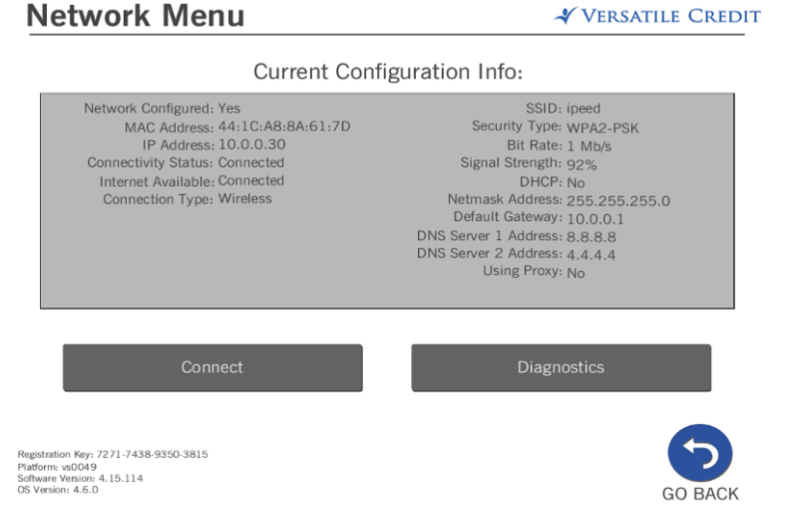

Networking

---

The Networking Menu contains all the network configurations currently set up on the kiosk (Current Configuration Info.) It also includes options to change network settings (Connect) and to diagnose network issues (Diagnostics)

Under Current Configuration Info, you'll find information such as the Connectivity Status, IP and MAC Addresses, and whether or not a kiosk is using a static IP address.

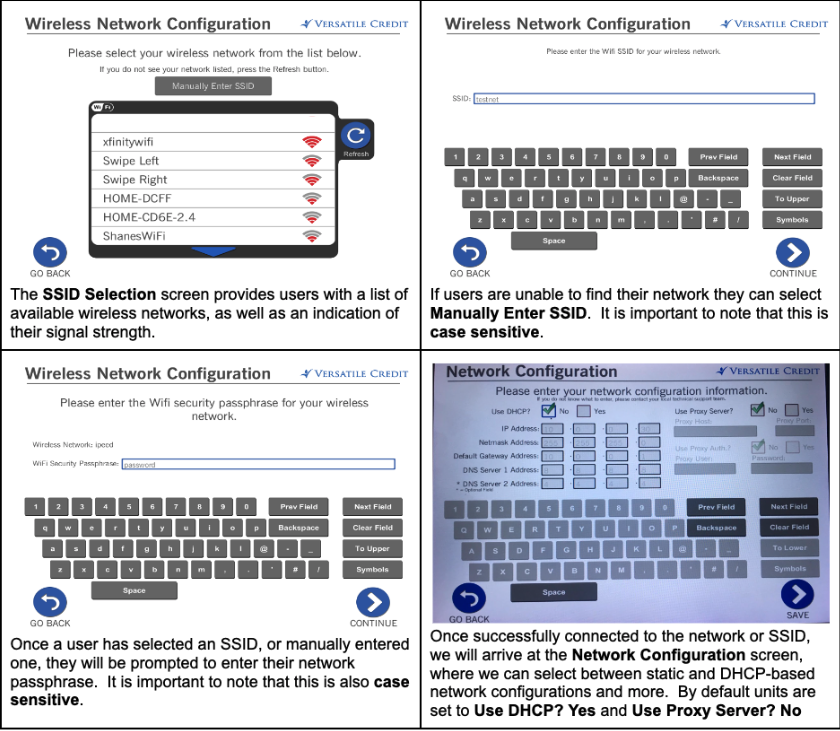

Connect

---

The Connect Menu is used to connect to a Wired or Wireless Network.

Diagnostics

---

The Network Diagnostics Menu contains various tools to troubleshoot network issues. These include:

• Network Adapter Info
• Trace Route
• Ping/Bandwidth
• Reset Adapter

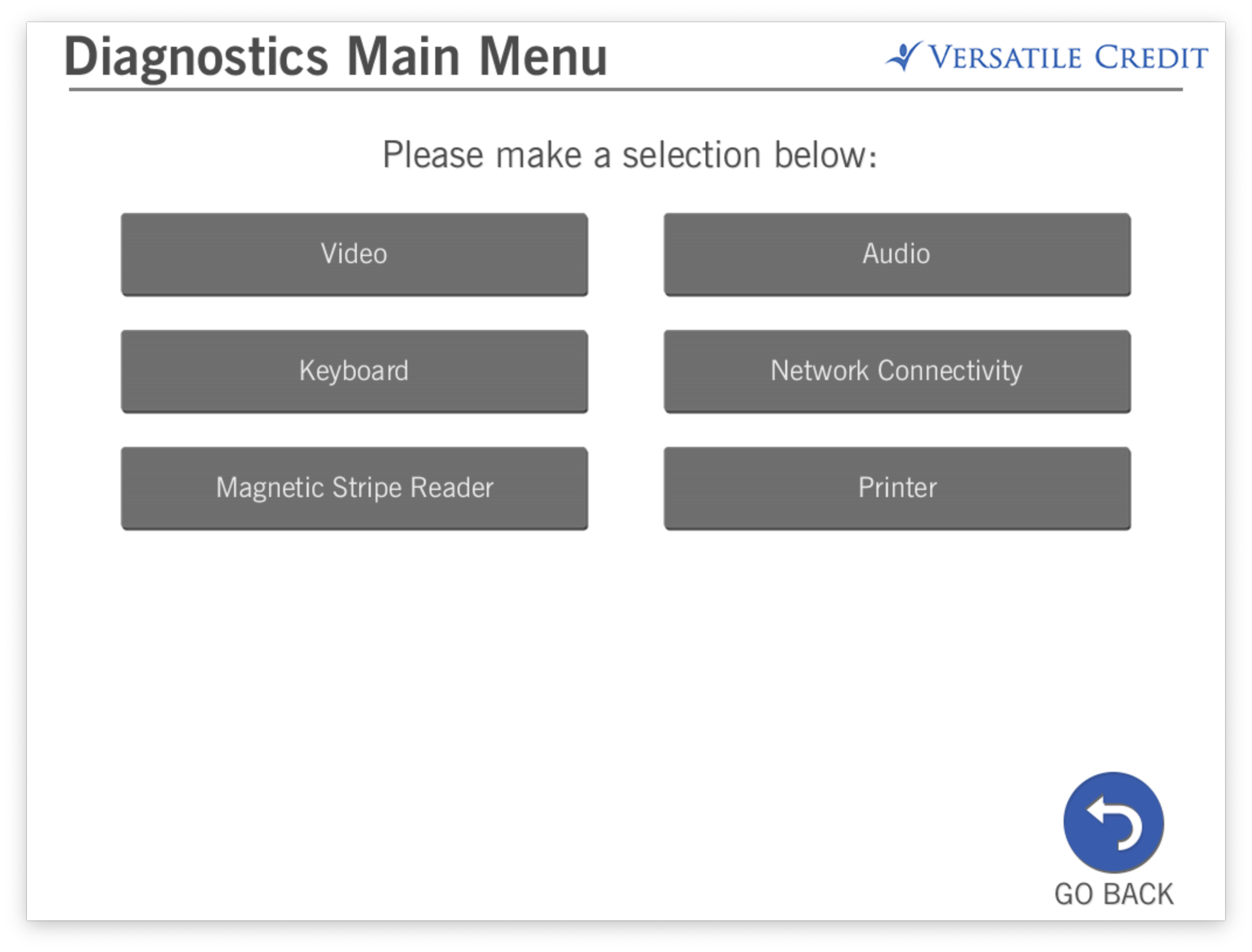

Diagnostics

---

The Networking Menu contains various tools to troubleshoot various issues on your kiosk. This includes:

• Video
• Audio
• Keyboard
• Printer (Test Printing)
• Network Connectivity

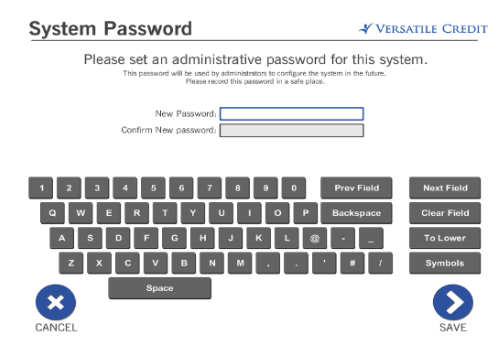

Password

---

The Password Menu allows users to change the kiosk administrative password.

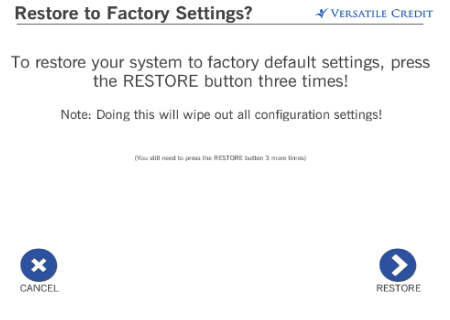

Factory Restore

---

The Factory Restore Menu allows users to restore their kiosk to its initial setup state. You can do this for a variety of reasons that include, but are not limited to:

• Moving a kiosk to a new location
• Remove an incorrect registration key
• Delete existing network information
• Troubleshooting

You'll need to press the Restore button three times to begin the restore process.
