Connecting a Snap Sign to a Network Using a USB Key

---

• The purpose of this guide is to provide a walkthrough of the process of connecting a Snap Sign to a Network
• This guide is intended for the personnel responsible for maintaining the sign
• If you require any assistance past what this guide provides, please contact Versatile Credit Customer Support.
  • Email: [e-mail]
  • Phone: [phone]

Overview

---

Versatile Credit Customer Support can generate a configuration file to connect a Snap Sign to a network if requested. This file can be placed into a FAT32-formatted USB drive and connected to a Snap Sign.

Requesting a Configuration File

---

To request a configuration file, please contact Versatile Credit Customer and provide the following information:

1. Network Type (Open, WEP, WPA, WPA2)
2. SSID (Network Name)
3. Password

A team member will contact you to confirm that the request was received and provide the file once it's been created.

Using a Configuration File

---

1. Place the configuration file into a FAT32-formatted USB drive
   1. Do NOT unzip the configuration file

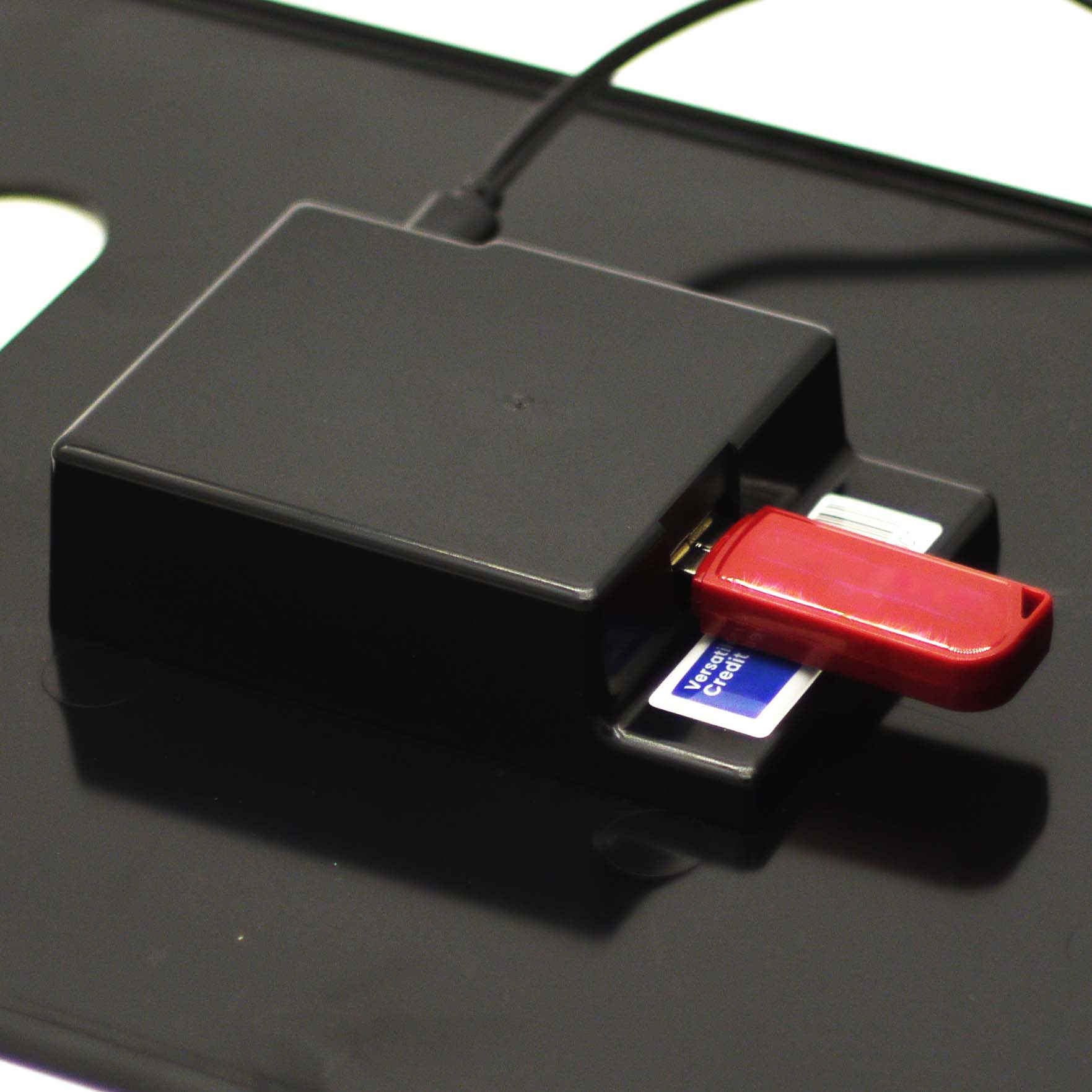

2. Insert your USB drive into the Snap Sign's USB-A port

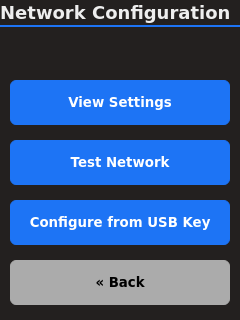

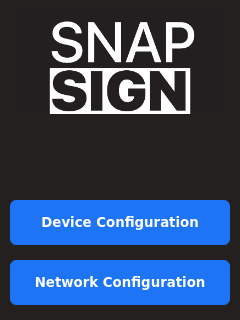

3. Click on Network Configuration



4. Click on Configure from USB Key

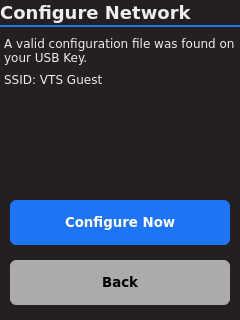

5. Click on Configure Now to begin network configuration



Once the network is configured, the Snap Sign will reboot. Once the Sign reboots, it should start displaying QR Codes.
