Printer - TSP-100 - How to Load Paper into a TSP-100 Printer

---

• The purpose of this guide is to provide a walkthrough of the process of loading paper into a TSP-100 printer found in Hive and ELO All-In-One kiosks
• This guide is intended for the personnel responsible for maintaining the kiosk
• If you require any assistance past what this guide provides, please contact Versatile Credit Customer Support
  • Email: [e-mail]
  • Phone: [phone]

Before You Begin

---

Before beginning the kiosk installation, be sure that you have the following:

1. A roll of small thermal paper

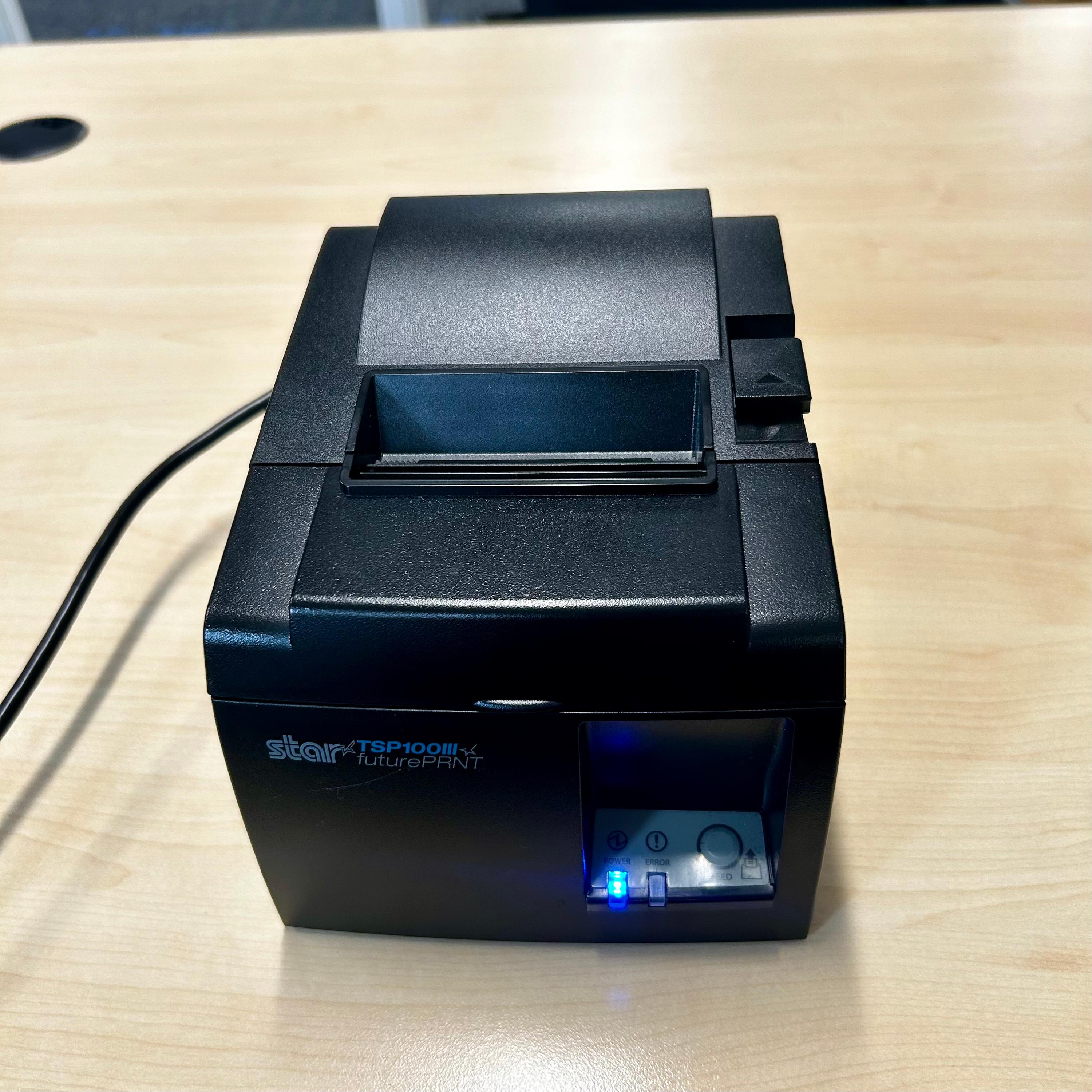

Confirm that your kiosk has a TSP-100 printer, as shown below.

If the printer in your kiosk is not a TSP-100, please see:

• Loading Paper into a KR203 Printer
• Loading Paper into an SK1 Printer

Step-by-Step Guide

---

1. On the side of the printer, press and slide the latch to open the lid.

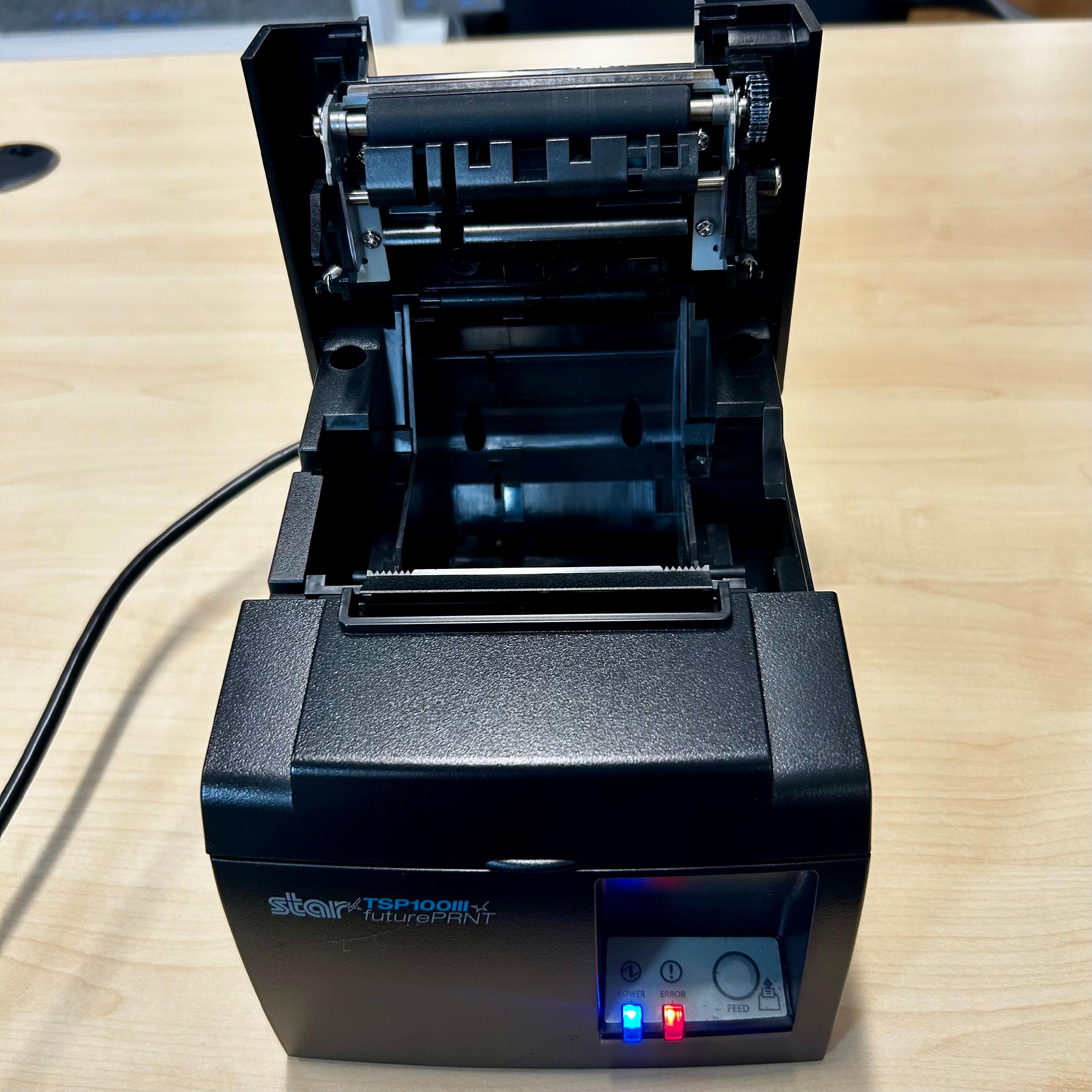

2. Flip the lid open.

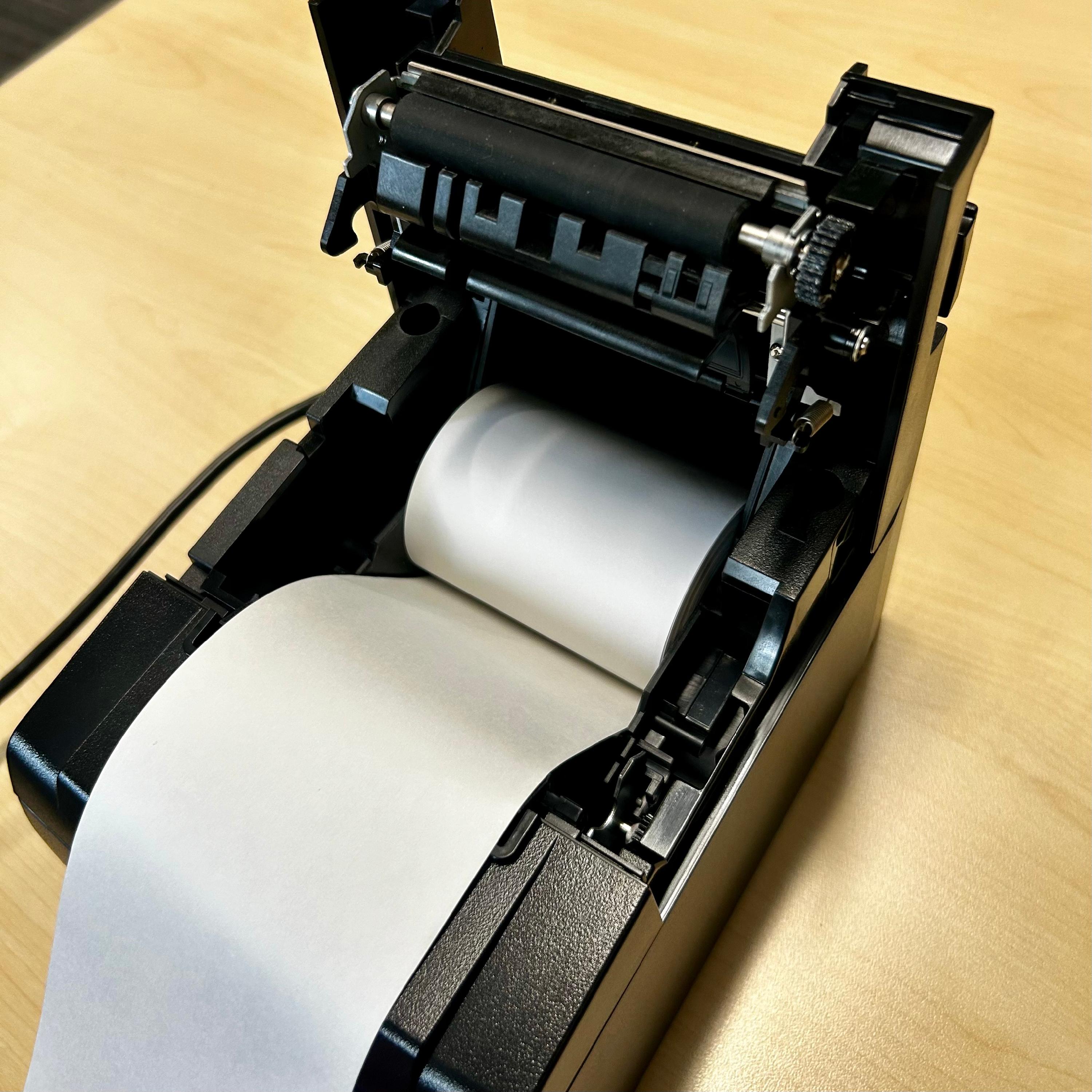

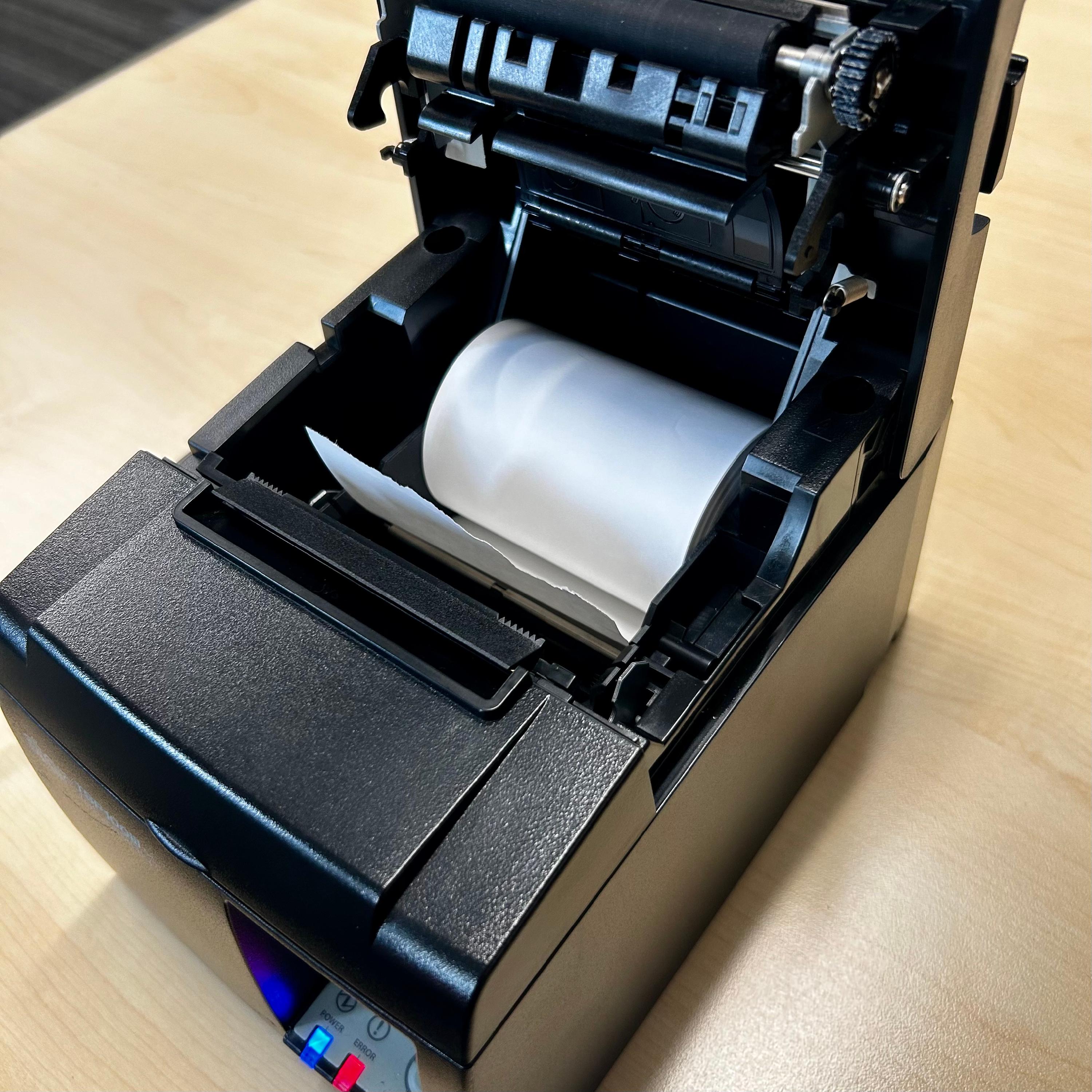

3. Place the paper roll in the printer with the loose paper coming from under the roll towards the front of the printer.

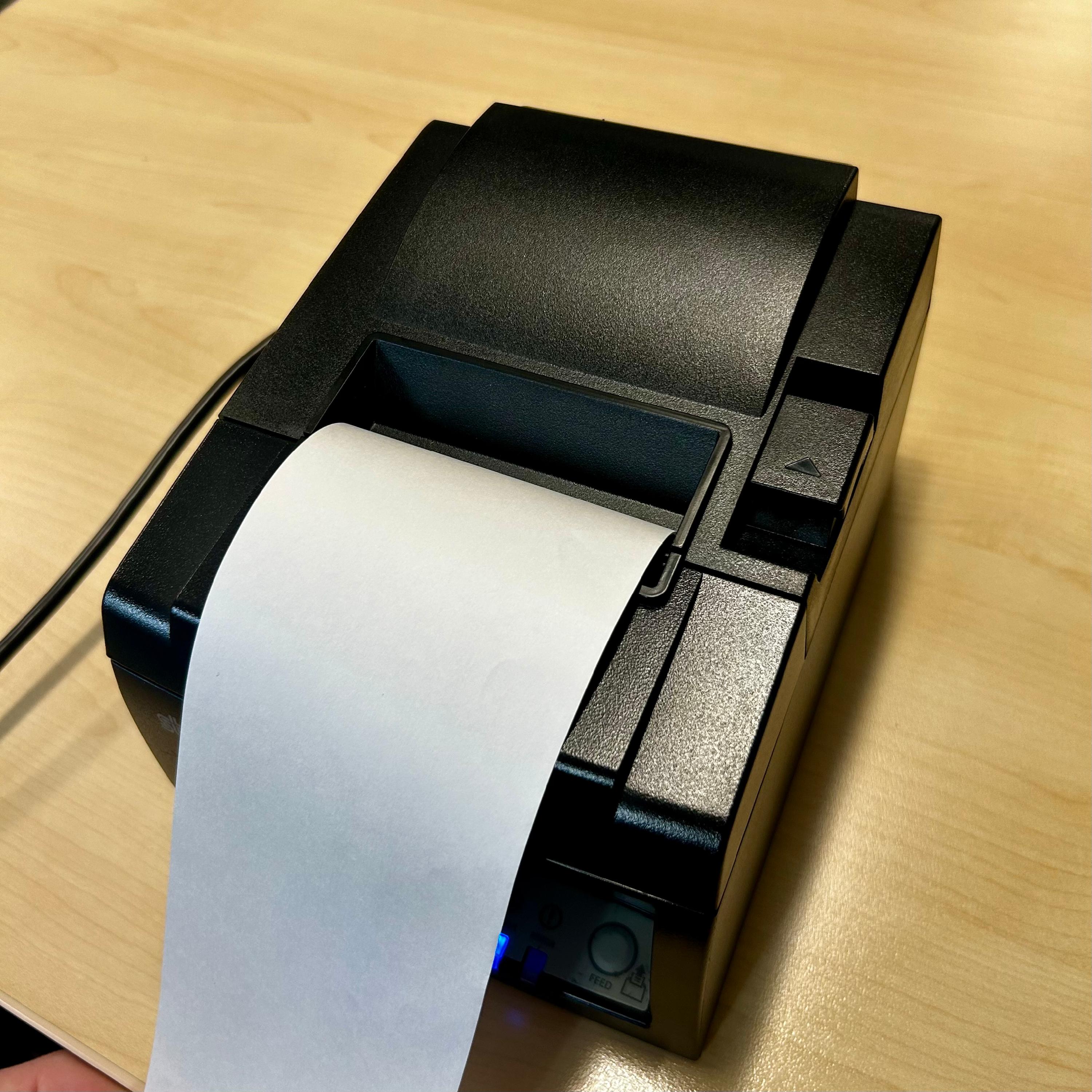

4. Once the thermal paper is installed, pull enough paper to reach the outside of the printer and close the lid on top of it. The receipt paper will advance and trim the excess paper.





5. The printer is now ready for use.
