Walkthrough - How to Connect a Kiosk Running Web Software to a Network

---

• The purpose of this guide is to provide a walkthrough of the process of connecting a kiosk running Web software to a Network
• This guide is intended for the personnel responsible for maintaining the kiosk
• If you require any assistance past what this guide provides, please contact Versatile Credit Customer Support
  • Email: [e-mail]
  • Phone: [phone]

Before You Begin

---

Before attempting to connect a kiosk to a network, be sure that you have the following:

1. The network name and password (if using Wi-Fi)
2. The kiosk's administrative password (*)

(*) - A kiosk's administrative password is chosen during the kiosk's initial setup process. Please call Versatile Credit Customer Support if you need the password.

Step-by-Step Guide

---

1. Reboot the kiosk by unplugging it and plugging it back in, or holding down the power button

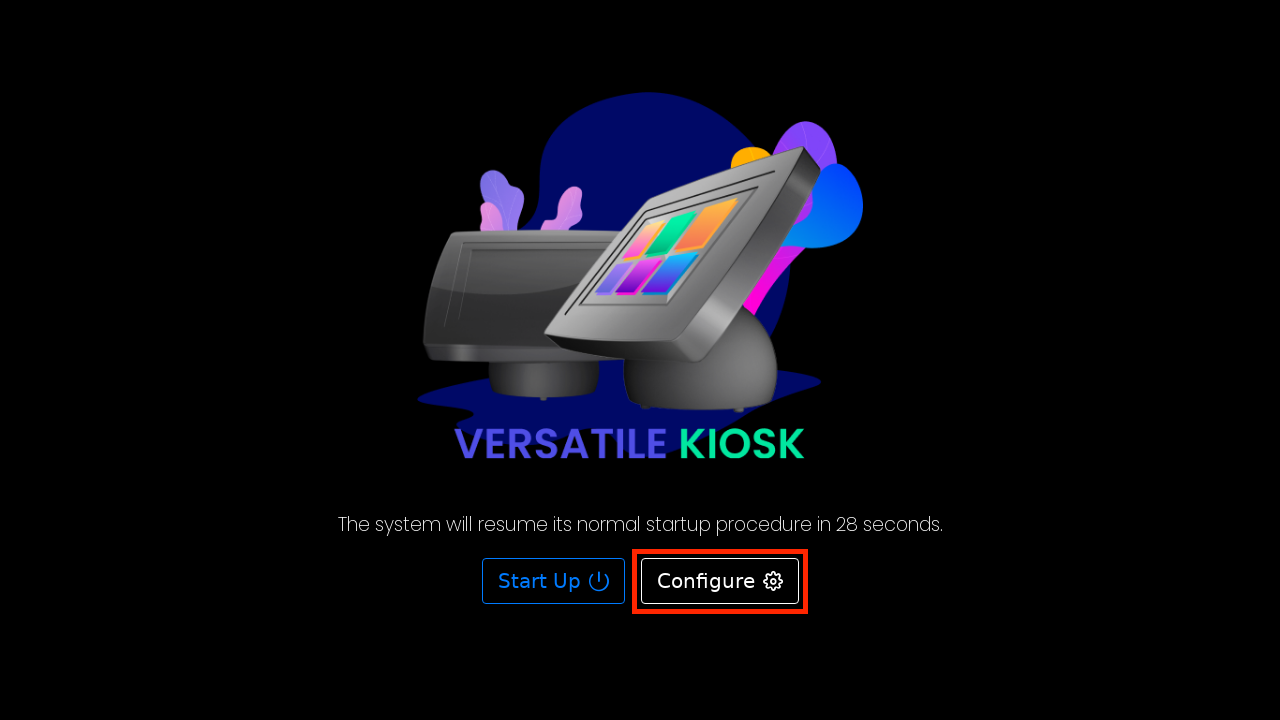

2. Click on Configure once the option becomes available

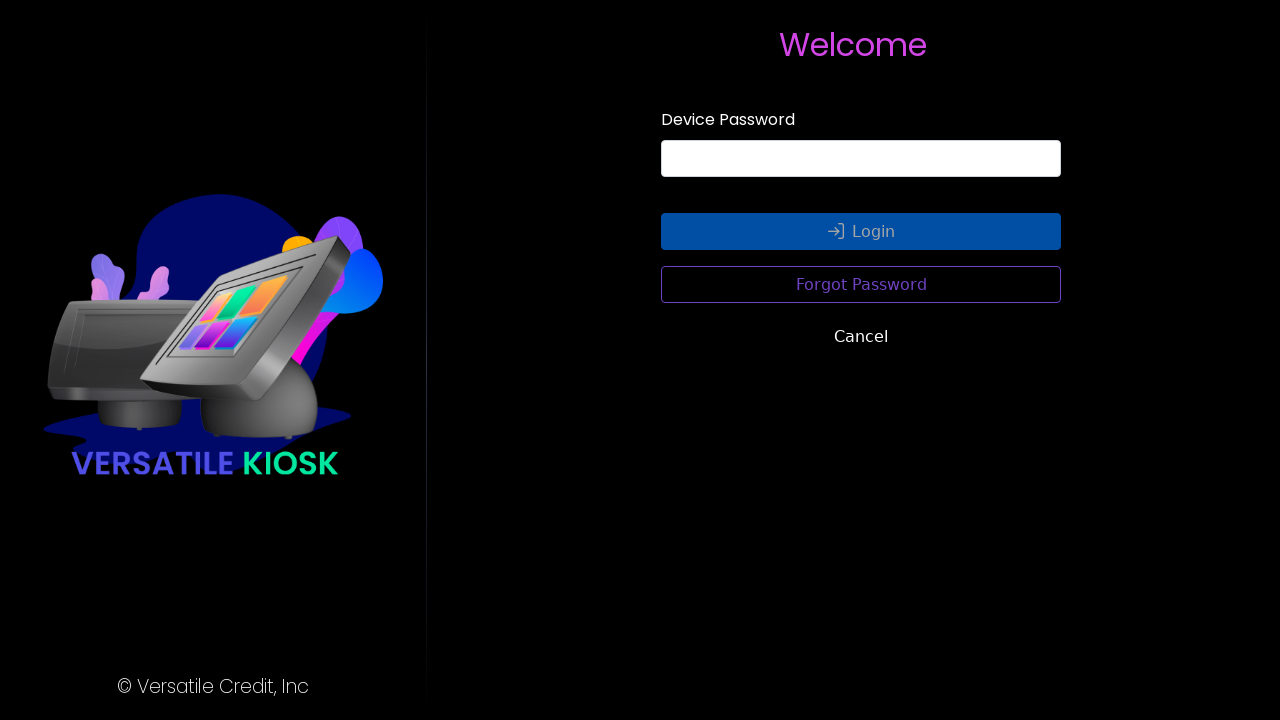

3. Enter the kiosk's administrative password



4. In the Configuration Main Menu, click on Settings in the top left corner of the screen and select Reset Network Settings from the Network section
5. The kiosk will now transition to the Network Setup screen
   1. If the kiosk doesn't immediately transition to the Network Setup screen, click on the power button on the top right and select Restart

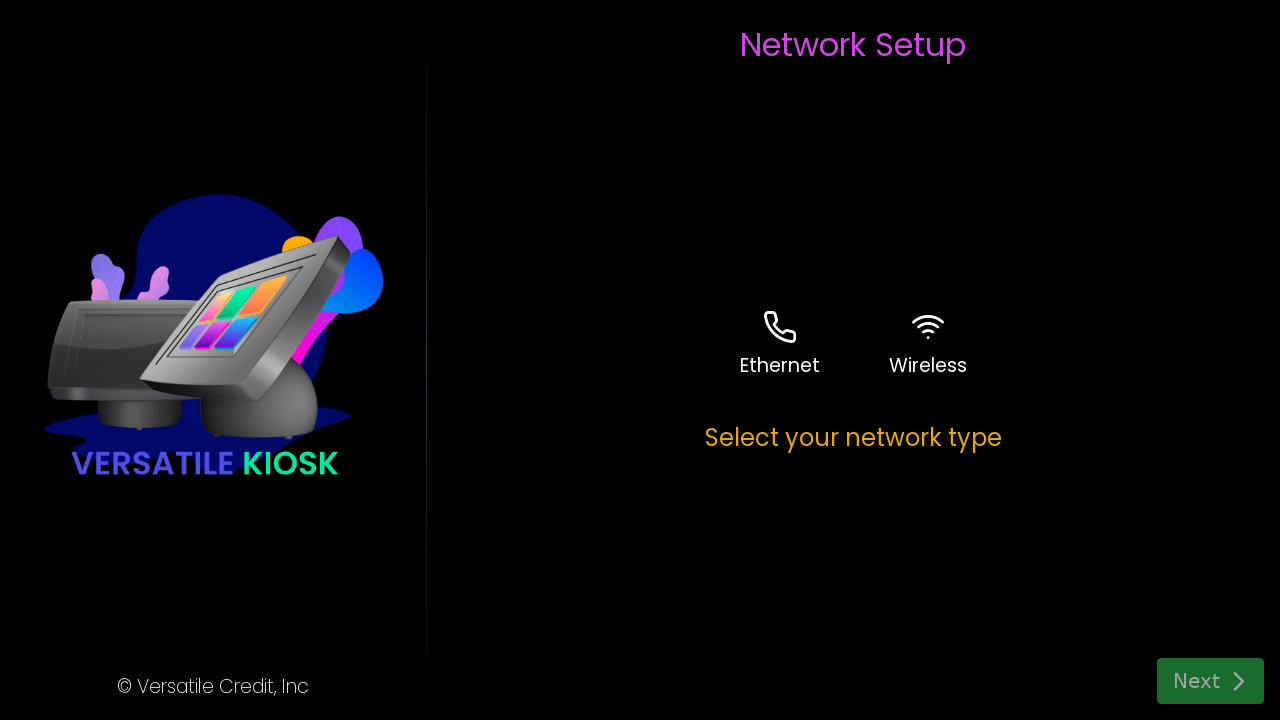

6. At the Network Setup screen, choose the type of network you wish to connect to

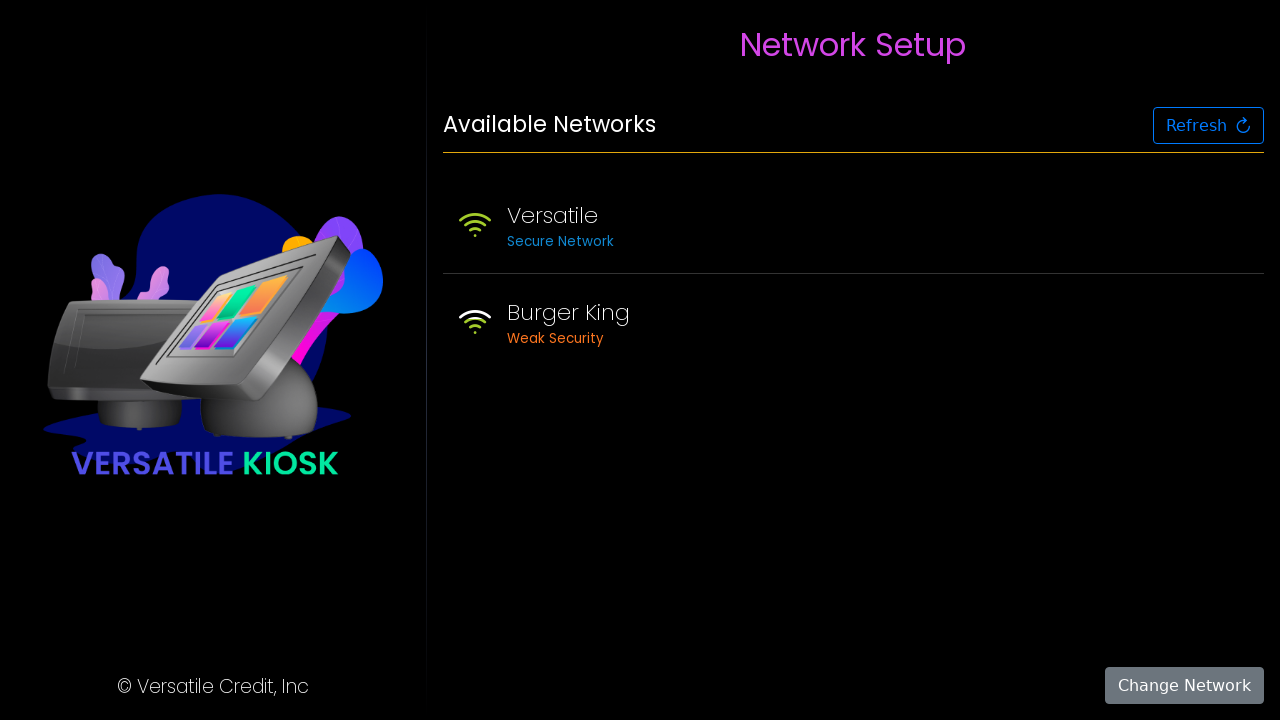

7. If you select a Wireless Network, you will be prompted to choose a Wi-Fi network and enter the password

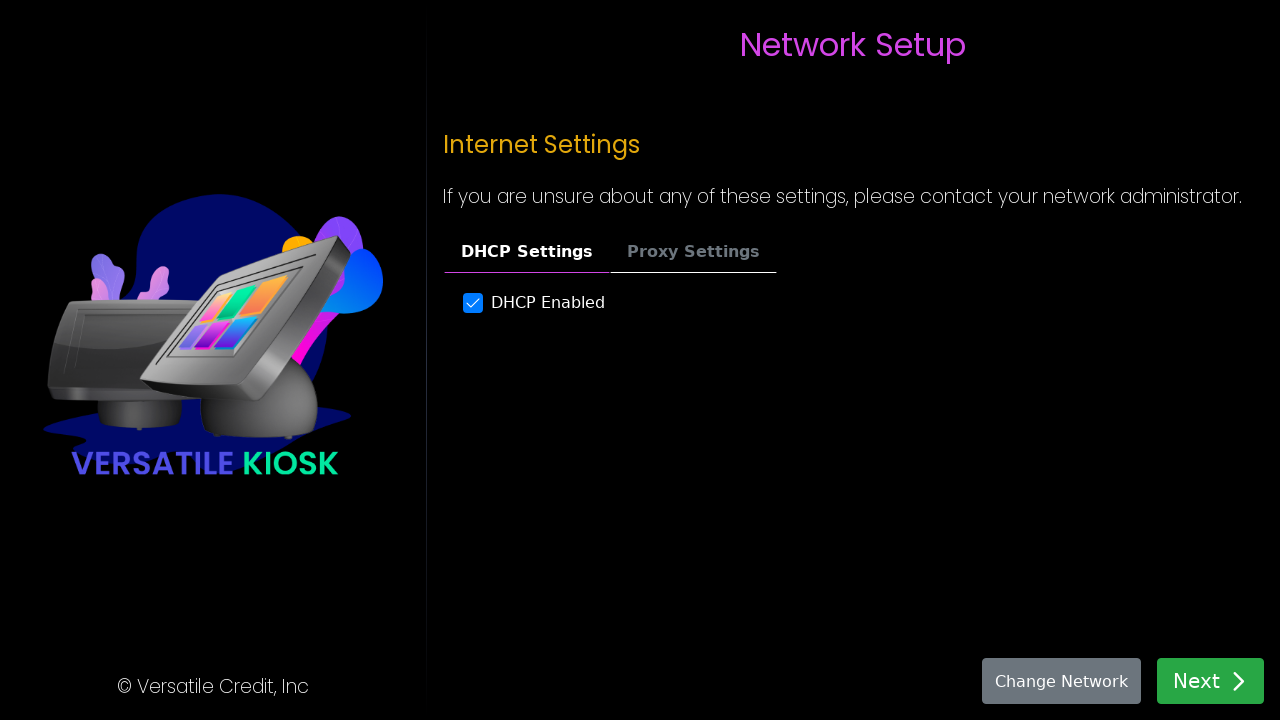

8. After selecting a Wi-Fi network or selecting Ethernet in Step 6, you will be taken to the Network Configuration screen

   1. Contact your local IT department for assistance during this step

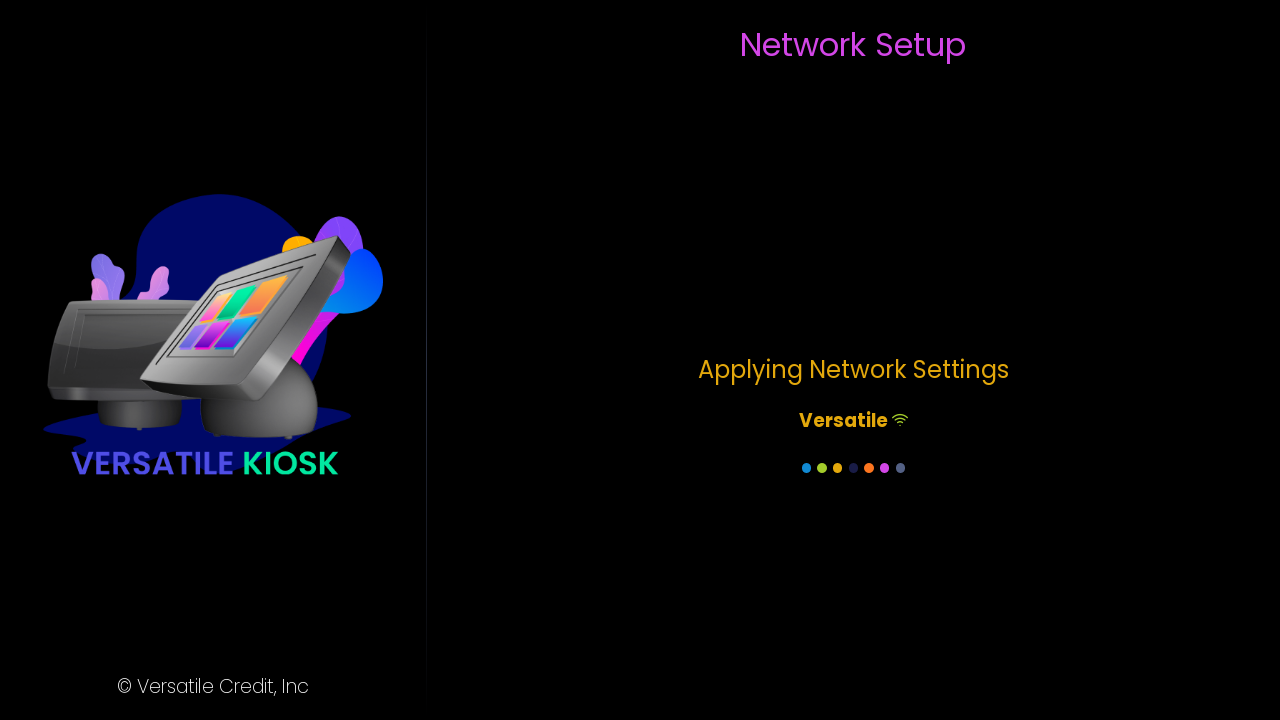

9. Once the network information is configured, the kiosk will apply the network settings and perform a network test



10. If the system completes the network test successfully, the kiosk will begin its system maintenance. Afterward, the kiosk will be ready for use
